Suite à une monté en charge de ma supervision, et à des fin d’optimisé la partie base de donnée pour Centreon qui effectuée de plus en plus de requette, que la quantité sauvegardé devient importante.
Je modifie l’infrastructure que j’ai monté oui y rajouter un base de données en HA

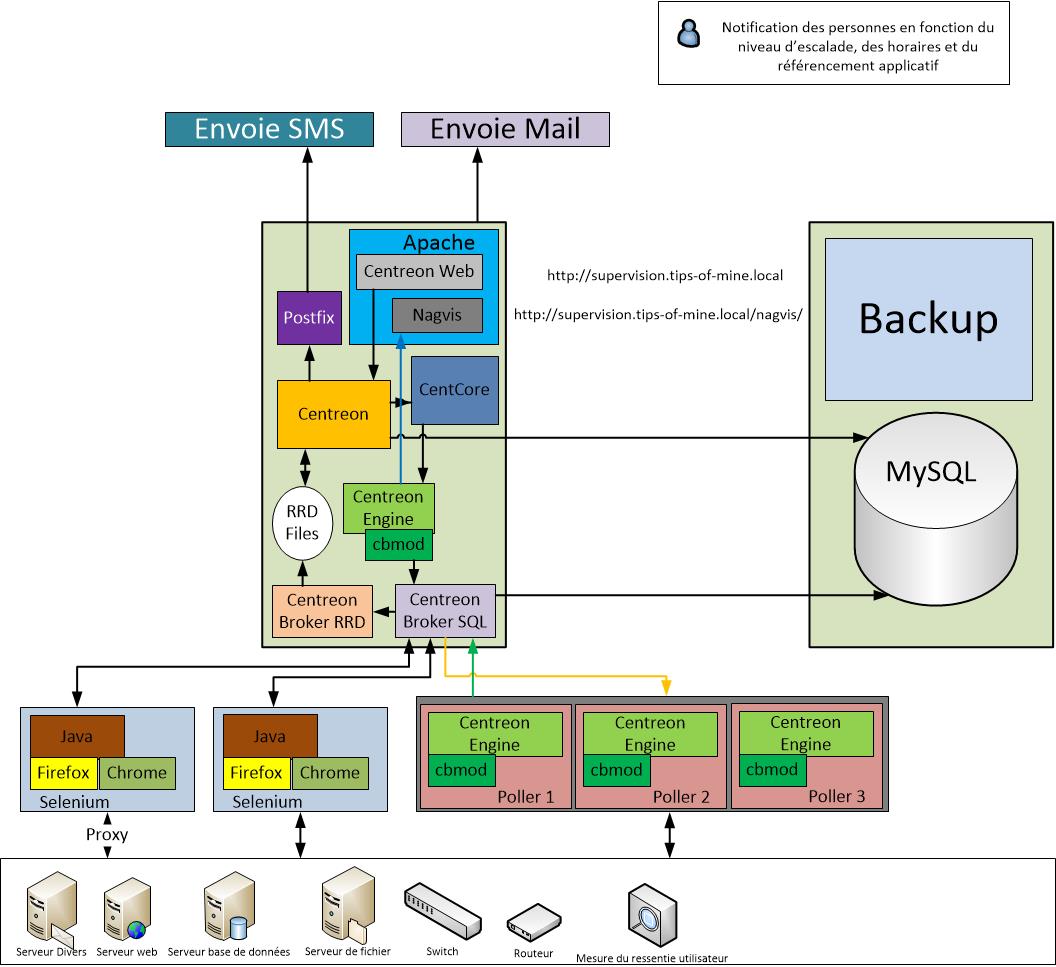

AVANT

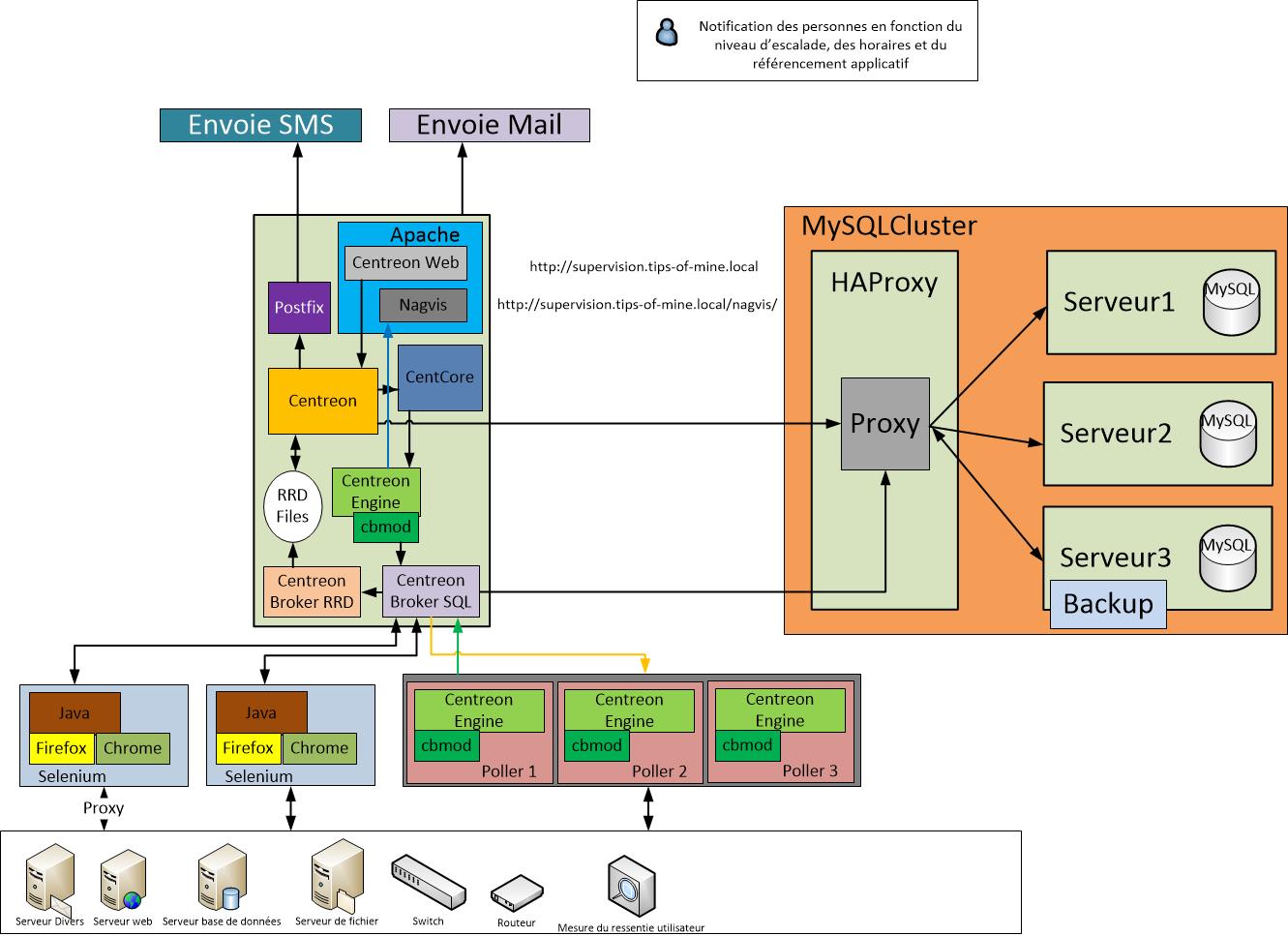

APRES
A cette étape, 2 possibilités s’offre à moi :
Soit une configuration avec 4 serveurs | Soit une configuration avec 3 serveurs. Celle-ci peut provoquer un problème avec le HAProxy au niveau des ports réseaus |
Load Balancer Hostname: haproxy OS: Centos 7 Private IP: 192.168.1.50 Node 1 Hostname: serveur1 OS: Centos 7 Private IP: 192.168.1.51 Node 2 Hostname: serveur2 OS: Centos 7 Private IP: 192.168.1.52 Node 3 Hostname: serveur3 OS: Centos 7 Private IP: 192.168.1.52 |
Node 1 + Load Balancer Hostname: serveur1 OS: Centos 7 Private IP: 192.168.1.51 Node 2 Hostname: serveur2 OS: Centos 7 Private IP: 192.168.1.52 Node 3 Hostname: serveur3 OS: Centos 7 Private IP: 192.168.1.52 |
Ceci est à faire une chacun des 3 serveurs (ou X serveurs) qui hébergeront les base de données
Nous exécution une mise à jour
yum -y update && yum -y upgrade
Nous ajoutons un nouveau repository
tee /etc/yum.repos.d/MariaDB.repo <<-‘EOF’
# MariaDB 10.1 CentOS repository list – created 2016-04-04 21:28 UTC
# http://mariadb.org/mariadb/repositories/
[mariadb]
name = MariaDB
baseurl = http://yum.mariadb.org/10.1/centos7-amd64
gpgkey=https://yum.mariadb.org/RPM-GPG-KEY-MariaDB
gpgcheck=1
EOF
Nous exécution une mise à jour avec le nouveau repository
yum -y update
Nous lancons l’installation de l’application
yum -y install mariadb-server mariadb-client
Nous pouvons démarrer le service MySQL
systemctl start mysql
Nous réinitiation le mot de passe ROOT de MySQL
‘/usr/bin/mysqladmin’ -u root password ‘Passw0rdTemp’
Nous lancons le script de sécurité de la base de données
mysql_secure_installation
NOTE: RUNNING ALL PARTS OF THIS SCRIPT IS RECOMMENDED FOR ALL MariaDB
SERVERS IN PRODUCTION USE! PLEASE READ EACH STEP CAREFULLY!In order to log into MariaDB to secure it, we’ll need the current
password for the root user. If you’ve just installed MariaDB, and
you haven’t set the root password yet, the password will be blank,
so you should just press enter here.Enter current password for root (enter for none):
OK, successfully used password, moving on…Setting the root password ensures that nobody can log into the MariaDB
root user without the proper authorisation.You already have a root password set, so you can safely answer ‘n’.
Change the root password? [Y/n] Y
New password:NEW_PASSWORD
Re-enter new password:NEW_PASSWORD
Password updated successfully!
Reloading privilege tables..
… Success!By default, a MariaDB installation has an anonymous user, allowing anyone
to log into MariaDB without having to have a user account created for
them. This is intended only for testing, and to make the installation
go a bit smoother. You should remove them before moving into a
production environment.Remove anonymous users? [Y/n]Y
… Success!Normally, root should only be allowed to connect from ‘localhost’. This
ensures that someone cannot guess at the root password from the network.Disallow root login remotely? [Y/n] N
… skipping.By default, MariaDB comes with a database named ‘test’ that anyone can
access. This is also intended only for testing, and should be removed
before moving into a production environment.Remove test database and access to it? [Y/n] N
… skipping.Reloading the privilege tables will ensure that all changes made so far
will take effect immediately.Reload privilege tables now? [Y/n] Y
… Success!Cleaning up…
All done! If you’ve completed all of the above steps, your MariaDB
installation should now be secure.
Nous arrétons le service MySQL
systemctl stop mysql
Création du répertoire de log
mkdir /var/log/mysql
chown mysql:mysql /var/log/mysql/
chmod 755 /var/log/mysql/
Nous allons modifier le fichier de configuration MySQL sur chaque serveur
nano /etc/my.cnf.d/server.cnf
Ceux-ci est commun au 3 serveurs
[mysqld]
datadir=/var/lib/mysql
socket=/var/lib/mysql/mysql.sock
innodb_force_recovery=0
ignore-db-dir=lost+found
open-files-limit=32000
innodb_file_per_table=1
key_buffer_size=4000M
sort_buffer_size=64M
join_buffer_size=8M
thread_cache_size=64M
read_buffer_size=1024K
read_rnd_buffer_size=512K
max_allowed_packet=1024M
#LOGS
general_log_file=/var/log/mysql/mysql.log
general_log=0
slow_query_log_file=var/log/mysql/mysql-slow.log
slow_query_log=1
long_query_time=10
log_error=/var/log/mysql/mysql_error.log
Serveur1 | Serveur2 | Serveur3 |
|
|
etc … |
Rajoutons une contrainte pour Centreon
nano /etc/systemd/system/mariadb.service.d/LimitNOFILE.conf
Contenu du fichier
[Service]
LimitNOFILE=32000
Nous rechargons la configuration des service
systemctl daemon-reload
Nous désactivons les politiques d’accès
setenforce 0
Pour ne pas avoir de blocage avec le firewall, nous ouvrons un certains nombre de port réseau
Configuration avec 4 serveurs | Configuration avec 3 serveurs. |
|
|
Nous pouvons aussi desactivé complétement le firewall
systemctl disable firewalld
systemctl stop firewalld
systemctl status firewalld
La commande suivant est à lancer seulement sur le premier serveur
galera_new_cluster
systemctl start mysql
Nous controlons que le service à bien démarrer
systemctl status mysql
Nous devons obtenir ceci nous indiquant que le service fonctionne correctement
● mariadb.service – MariaDB database server
Loaded: loaded (/usr/lib/systemd/system/mariadb.service; enabled; vendor preset: disabled)
Drop-In: /etc/systemd/system/mariadb.service.d
└─migrated-from-my.cnf-settings.conf
Active: active (running) since mar. 2017-08-08 16:47:08 CEST; 20h ago
Main PID: 2969 (mysqld)
Status: « Taking your SQL requests now… »
CGroup: /system.slice/mariadb.service
└─2969 /usr/sbin/mysqld –wsrep-new-cluster –wsrep_start_position=9d28cc81-7c45-11e7-9d6b-53f678c75d63:0août 08 16:47:04 serveur1.tips-of-mine.local systemd[1]: Starting MariaDB database server…
août 08 16:47:05 serveur1.tips-of-mine.local sh[2859]: 2017-08-08 16:47:05 140169514576128 [Note] /usr/sbin/mysqld (mysqld 10.1.25-MariaDB) starting as process 2937 …
août 08 16:47:08 serveur1.tips-of-mine.local sh[2859]: WSREP: Recovered position 9d28cc81-7c45-11e7-9d6b-53f678c75d63:0
août 08 16:47:08 serveur1.tips-of-mine.local mysqld[2969]: 2017-08-08 16:47:08 140484526786816 [Note] /usr/sbin/mysqld (mysqld 10.1.25-MariaDB) starting as process 2969 …
août 08 16:47:08 serveur1.tips-of-mine.local systemd[1]: Started MariaDB database server.
Nous pouvons contoler la configuration du cluster avec la commande suivant
mysql -uroot -p -e « show status like ‘wsrep%' »
Nous obtenons ceci :
Enter password:
+——————————+—————————————+
| Variable_name | Value |
+——————————+—————————————+
| wsrep_apply_oooe | 0.000000 |
| wsrep_apply_oool | 0.000000 |
| wsrep_apply_window | 1.000000 |
| wsrep_causal_reads | 0 |
| wsrep_cert_deps_distance | 1.000000 |
| wsrep_cert_index_size | 1 |
| wsrep_cert_interval | 0.000000 |
| wsrep_cluster_conf_id | 54 |
| wsrep_cluster_size | 2 |
| wsrep_cluster_state_uuid | 9d28cc81-7c45-11e7-9d6b-53f678c75d63 |
| wsrep_cluster_status | Primary |
| wsrep_commit_oooe | 0.000000 |
| wsrep_commit_oool | 0.000000 |
| wsrep_commit_window | 1.000000 |
| wsrep_connected | ON |
| wsrep_desync_count | 0 |
| wsrep_evs_delayed | |
| wsrep_evs_evict_list | |
| wsrep_evs_repl_latency | 0/0/0/0/0 |
| wsrep_evs_state | OPERATIONAL |
| wsrep_flow_control_paused | 0.000000 |
| wsrep_flow_control_paused_ns | 0 |
| wsrep_flow_control_recv | 0 |
| wsrep_flow_control_sent | 0 |
| wsrep_gcomm_uuid | 73fa0e2b-7c48-11e7-8176-c28962b7e539 |
| wsrep_incoming_addresses | 192.168.1.51:3306,192.168.1.52:3306 |
| wsrep_last_committed | 2 |
| wsrep_local_bf_aborts | 0 |
| wsrep_local_cached_downto | 1 |
| wsrep_local_cert_failures | 0 |
| wsrep_local_commits | 0 |
| wsrep_local_index | 0 |
| wsrep_local_recv_queue | 0 |
| wsrep_local_recv_queue_avg | 0.007299 |
| wsrep_local_recv_queue_max | 2 |
| wsrep_local_recv_queue_min | 0 |
| wsrep_local_replays | 0 |
| wsrep_local_send_queue | 0 |
| wsrep_local_send_queue_avg | 0.000000 |
| wsrep_local_send_queue_max | 1 |
| wsrep_local_send_queue_min | 0 |
| wsrep_local_state | 4 |
| wsrep_local_state_comment | Synced |
| wsrep_local_state_uuid | 9d28cc81-7c45-11e7-9d6b-53f678c75d63 |
| wsrep_protocol_version | 7 |
| wsrep_provider_name | Galera |
| wsrep_provider_vendor | Codership Oy <info@codership.com> |
| wsrep_provider_version | 25.3.20(r3703) |
| wsrep_ready | ON |
| wsrep_received | 137 |
| wsrep_received_bytes | 11582 |
| wsrep_repl_data_bytes | 436 |
| wsrep_repl_keys | 1 |
| wsrep_repl_keys_bytes | 31 |
| wsrep_repl_other_bytes | 0 |
| wsrep_replicated | 1 |
| wsrep_replicated_bytes | 531 |
| wsrep_thread_count | 2 |
+——————————+—————————————+
Pour ne voir que ce qui nous intérésse, voici la commande qui affiche que le nombre de noeud du cluster
mysql -u root -p -e « SHOW STATUS LIKE ‘wsrep_cluster_size' »
Enter password:
+——————–+——-+
| Variable_name | Value |
+——————–+——-+
| wsrep_cluster_size | 1 |
+——————–+——-+
Depuis les autres serveurs, nous pouvons lancer la commande pour lancer le service MySQL
systemctl start mysql
Et au fure et à mesure que lancons le service MySQL sur les autres serveur, depuis la premeir nous pouvons relancer la commande suivante pour voir le nombre de serveur gripper qui indique le nombre de serveur dans le cluster
mysql -u root -p -e « SHOW STATUS LIKE ‘wsrep_cluster_size' »
Enter password:
+——————–+——-+
| Variable_name | Value |
+——————–+——-+
| wsrep_cluster_size | 3 |
+——————–+——-+
netstat -ntpl | grep sql
A partie d’ici, il faut faire les commandes sur le serveur HAProxy (ou le serveur 1 en fonctionne des configuration)
groupadd -g 1492 mysqlchk
useradd -u 1492 -g mysqlchk -m -r -d /usr/share/mysqlcheck -c « MySQL check » -s /bin/bash mysqlchk
usermod -aG mysqlchk mysqlchk
A faire seulement sur l’un des noeuds
mysql -u root -p
> GRANT PROCESS ON *.* TO ‘clustercheckuser’@’localhost’ IDENTIFIED BY ‘clustercheckpassword!’;
Installation du composant
yum install xinetd
Téléchargmenet du composant
cd /usr/local/src
curl -o clustercheck https://raw.githubusercontent.com/olafz/percona-clustercheck/master/clustercheck
chmod +x clustercheck
mv clustercheck /usr/bin/
Création du fichier de configuration
tee /etc/xinetd.d/mysqlchk <<-‘EOF’
# default: on
# description: mysqlcheck
service mysqlcheck
{
disable = no
flags = REUSE
socket_type = stream
port = 9200 # This port used by xinetd for clustercheck
wait = no
user = nobody
server = /usr/bin/clustercheck
log_on_failure += USERID
only_from = 0.0.0.0/0
per_source = UNLIMITED
}
EOF
Nous rémarrons le service
systemctl start xinetd
Nous pouvons controler que tout fonctionne
/usr/bin/clustercheck
Si nous obtenons le message si-dessous tout est OK
HTTP/1.1 200 OK
Content-Type: text/plain
Connection: close
Content-Length: 40Percona XtraDB Cluster Node is synced.
Installation du la couche proxy
yum install haproxy
Nous éditons le fichier de configuration du service
nano /etc/rsyslog.conf
Nous devons décommentaié les lignes (15 et 16)
# Provides UDP syslog reception
$ModLoad imudp
$UDPServerRun 514
Ajouter la ligne (17)
$AllowedSender UDP, 127.0.0.1
Nous devons modifier les lignes (56 et 57)
*.info;mail.none;authpriv.none;cron.none,local2.none /var/log/messages
local2.* /var/log/haproxy.log
Nous sauvegardons le fichier de configuration par defaut en cas de problème ou d’ajustement de variable
cp /etc/haproxy/haproxy.cfg /etc/haproxy/haproxy.cfg.bak
rm /etc/haproxy/haproxy.cfg
Nous allons créer le fichier avec le modéle suivant
tee /etc/haproxy/haproxy.cfg <<-‘EOF’
#
# /etc/haproxy/haproxy.cfg
##———————————————————————
# Global settings
#———————————————————————
global
# to have these messages end up in /var/log/haproxy.log you will
# need to:
#
# 1) configure syslog to accept network log events. This is done
# by adding the ‘-r’ option to the SYSLOGD_OPTIONS in
# /etc/sysconfig/syslog
#
# 2) configure local2 events to go to the /var/log/haproxy.log
# file. A line like the following can be added to
# /etc/sysconfig/syslog
#
# local2.* /var/log/haproxy.log
#
log 127.0.0.1 local2
log /dev/log local0
log /dev/log local1 noticechroot /var/lib/haproxy
pidfile /var/run/haproxy.pid
maxconn 1020
user haproxy
group haproxy
daemon# turn on stats unix socket
stats socket /var/lib/haproxy/stats.sock mode 660 level admin
stats timeout 30s#———————————————————————
# common defaults that all the ‘frontend’ and ‘backend’ sections will
# use if not designated in their block
#———————————————————————
defaults
mode http
log global
option tcplog
option dontlognull
option redispatch
retries 3
timeout queue 45s
timeout connect 5s
timeout client 1m
timeout server 1m
timeout check 10s
maxconn 1020#———————————————————————
# HAProxy statistics backend
#———————————————————————
#Nous devons modifier le port réseau
#ainsique le login et mot de passe des statistique
listen stats 0.0.0.0:8282
mode http
stats enable
stats show-legends
stats show-node
stats refresh 5s
stats uri /haproxy
stats realm HAProxy\ Statistics
stats auth Admin:Passw0rd
stats admin if TRUE#Nous devons modifier le port laisser 3306 si vous avez un serveur HAproxy à par
# mettre le port réseau choisi plus haut
listen ClusterMySQL
bind *:3306
mode tcp
maxconn 200
balance roundrobin
option forwardfor
option tcpka
option mysql-check user haproxy_check
option httpchk
option tcp-check
option allbackups
server quasrv054002v10 192.168.1.51:3306 maxconn 60 check port 3306 inter 12000 downinter 5s rise 3 fall 3 slowstart 60s weight 1
server quasrv054002v08 192.168.1.52:3306 maxconn 60 check port 3306 inter 12000 downinter 5s rise 3 fall 3 slowstart 60s weight 2
server quasrv054002v11 192.168.1.53:3306 maxconn 60 check port 3306 inter 12000 downinter 5s rise 3 fall 3 slowstart 60s weight 3
EOF
Nous lancons le service
systemctl start haproxy
Nous controlons que le service à bien démarrer
systemctl status haproxy
Nous devons obtenir ceci nous indiquant que le service fonctionne correctement
● haproxy.service – HAProxy Load Balancer
Loaded: loaded (/usr/lib/systemd/system/haproxy.service; disabled; vendor preset: disabled)
Active: active (running) since mer. 2017-08-09 10:50:58 CEST; 1h 59min ago
Main PID: 12223 (haproxy-systemd)
CGroup: /system.slice/haproxy.service
├─12223 /usr/sbin/haproxy-systemd-wrapper -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid
├─12224 /usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -Ds
└─12225 /usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -Dsaoût 09 10:50:58 HAPROXY.tips-of-mine.local systemd[1]: Starting HAProxy Load Balancer…
août 09 10:50:58 HAPROXY.tips-of-mine.local haproxy-systemd-wrapper[12223]: haproxy-systemd-wrapper: executing /usr/sbin/haproxy -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -Ds
août 09 10:50:58 HAPROXY.tips-of-mine.local haproxy-systemd-wrapper[12223]: [WARNING] 220/105058 (12224) : parsing [/etc/haproxy/haproxy.cfg:77] : ‘maxconn’ ignored because backend ‘ClusterMySQL-Back’ …’ instead ?
août 09 10:50:58 HAPROXY.tips-of-mine.local haproxy-systemd-wrapper[12223]: [WARNING] 220/105058 (12224) : config : ‘option forwardfor’ ignored for backend ‘ClusterMySQL-Back’ as it requires HTTP mode.
août 09 10:50:58 HAPROXY.tips-of-mine.local haproxy[12224]: Proxy stats started.
août 09 10:50:58 HAPROXY.tips-of-mine.local haproxy[12224]: Proxy stats started.
août 09 10:50:58 HAPROXY.tips-of-mine.local haproxy[12224]: Proxy ClusterMySQL-Front started.
août 09 10:50:58 HAPROXY.tips-of-mine.local haproxy[12224]: Proxy ClusterMySQL-Front started.
août 09 10:50:58 HAPROXY.tips-of-mine.local haproxy[12224]: Proxy ClusterMySQL-Back started.
août 09 10:50:58 HAPROXY.tips-of-mine.local haproxy[12224]: Proxy ClusterMySQL-Back started.
Hint: Some lines were ellipsized, use -l to show in full.
Pour commencer à générer du traffic, nous lancons la commande suivante
mysql -u root -p -h 192.168.1.50 -P 3306 -e « select @@hostname »

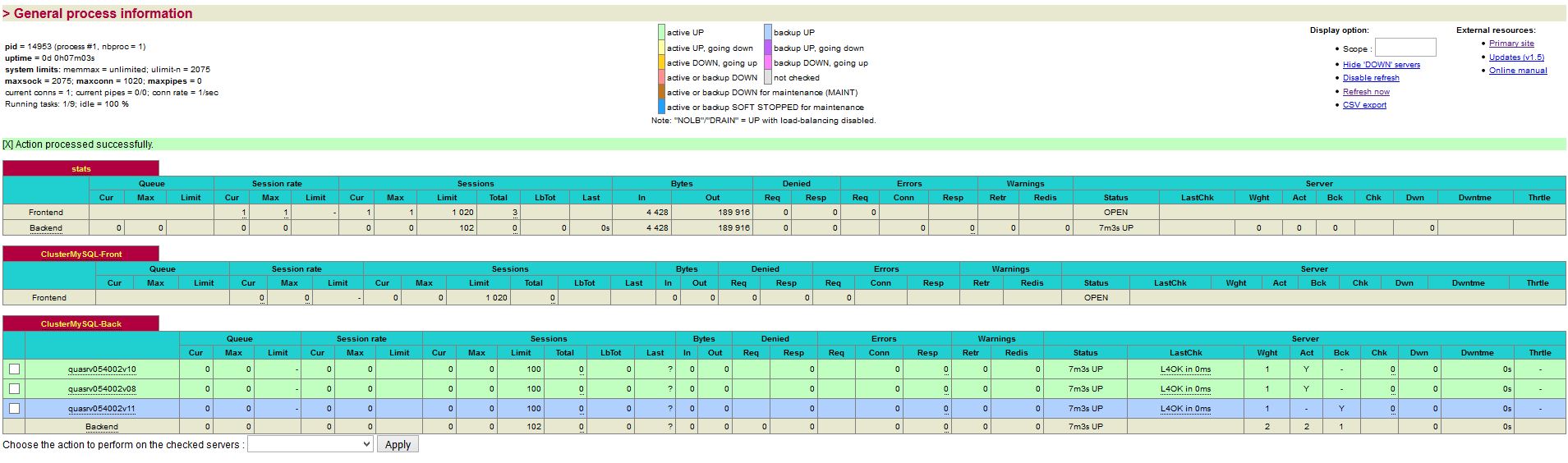

Nouys pouvons donc aller voir les statistiques du serveur HAProxy sur son interface Web:
http://192.168.1.50:8282/haproxy
user: Admin
password: Passw0rd
Nous pouvons donc utiliser ce cluster avec l’adresse IP du HAProxy 192.168.1.50:3306 ou le nom du serveur1 avec le port réseau définie 192.168.1.51:3030
Nous pouvons aussi controler la réplication entre les serveurs
Depuis l’un des serveurs saisir :
mysql -u root -p -e « create database TestDeReplication »
Et depuis les autres serveurs nous pouvons controler que la table est bien créé
mysql -u root -p -e « show databases »;
